I. Equipment features:

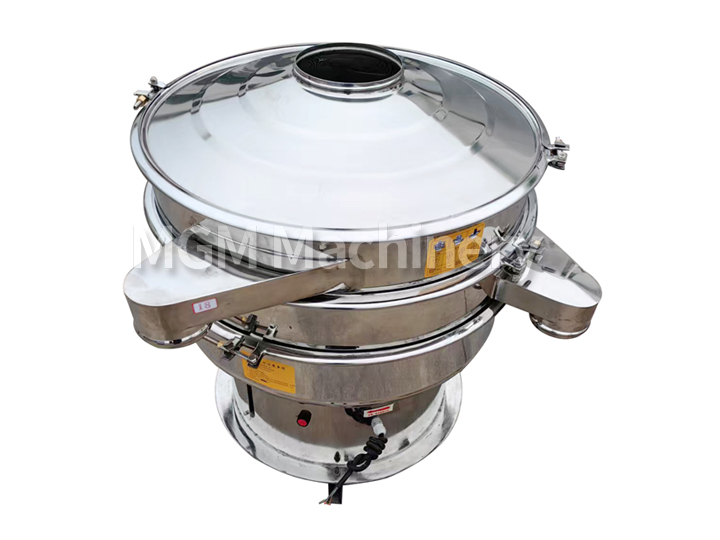

ZS type series stratified sieve is adapted to flow operation, it is the ideal equipment for continuous discharging of coarse and small particles with unequal proportion through the sieve .
equipment performance:
ZS series type high efficiency sieve machine by the sieve box, transmission excitation device, four parts of the machine base, the face can be used in a single layer or multi-layer grading, compact structure, easy operation and maintenance, smooth operation, low noise, large volume of materials handled, fineness, wide range of adaptation and other advantages.
（1）Technical parameters
|
No. |
Item |
Unit |
Specification |
|
1 |
Production capacity |
Kg/h |
30-200 |
|
2 |
Mesh of sieve |
Mesh |
12-80 |
|
3 |
Motor power |
kw |
0.55 |
|
4 |
Spindle speed |
rpm |
1380 |
（2）Configuration list
|
Name |
Material |
Specification |
|
Main machine |
SS304 |
δ=1.5mm |
|
Motor |
|
0.55KW |
|
Eccentric block |
A3 painting |
Standard |
|
Electrical appliances |
|
Full set |
|
Sieving device(sieve screen,sieve mat,sieve ring) |
SS304 |
Φ350 |
|
Sieve mesh |
|
User-defined |
|
Inlet |
SS304 |
Φ300 |
|
Outlet |
SS304 |
Threeoutlets |
