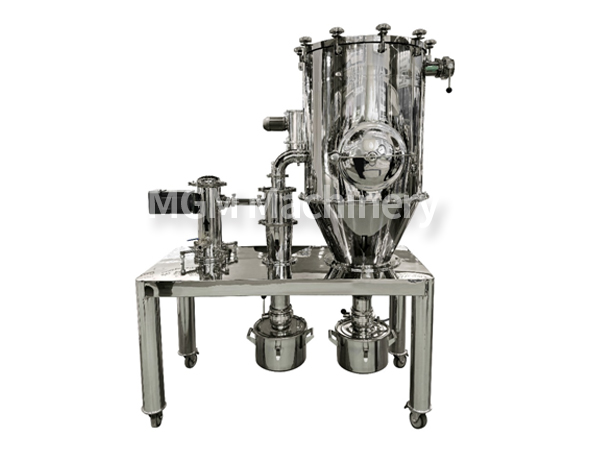

SNQSF-120 Lab Jet Mill

NO.

EQUIPMENT NAME

SPECIFICATION

QTY

1

SNQSF-120

Jet Mill Host

1. Overall material: SUS304.

2. Classifying wheel: Material SUS304.

3. Discharger, sleeve, and grading wheel are made of SUS304.

4. The thickness of the main cylinder is 6mm.

5. Main motor: high-speed motor, designed speed 20,000 rpm, actual use 16,800 rpm, power 0.75KW.

6. Negative pressure suction feeding.

7 The inside and outside of the equipment are finely polished.

8. The main platform is made of stainless steel 304 and finely polished.

1

2

SNXF-150

Cyclone separator

1. Specification: Φ150.

2. Material: SUS304.

3. Plate thickness: 3mm.

4. All connections are made of clamps for quick installation, easy to disassemble and assemble.

5. Fine polishing of inner and outer surfaces.

1

3

SNDMC-2.6

Pulse dust collector

1. Filtration area 2.6M², circular structure, built-in filter bags with 10 precision 0.2um (specification φ125*700) filter bags. Pulse bag dust collector principle is adopted. Dust content is controlled below 10mg/m³, and dust collection rate is above 99.99%.

2. The adjustable function of dust collector pulse, according to different materials, different pulses are used, that is, backwash interval time and spray time can be adjusted and set.

3. The filter bag adopts PTFE coated filter bag, and the filter bag skeleton material is SUS304.

4. The electromagnetic pulse valve is directly connected to the spray pipe hard pipe.

5. Material: SUS304 is used as the whole.

6. The outer surface is finely polished.

1

4

High pressure induced draft fan

1. Power: 3KW, aluminum alloy.

2. Total pressure: 28Kpa, flow rate 470m³/h.

1

5

PLC Electric Control Cabinet

1. SIEMENS 10-inch true color touch screen; material 304.

2. Delta PLC and frequency converter, automatic control, parameter touch screen control.

3. Dynamic display of process flow, automatic fault alarm, effective control of crushing process, and stability of finished products.

4. Electrical appliances are selected from Delixi Group products.

5. Equipped with DCS distributed control standard communication interface.

6. Pressure display: main air pressure, shaft seal pressure, gas seal pressure.

1

6

Receiving bucket

1. Specification: Φ300*200

2. Material: SUS304.

2

7

Manual butterfly valve

1. Specification: DN100, quick-install connection.

2. Material: SUS304.

2

8

Manual butterfly valve

1. Specification: DN65

2. Material: stainless steel 304,

1

9

Dust removal to induced draft fan pipeline

1. Specification: Φ76, according to the drawing.

2. Material: plastic steel wire pipe.

4

10

Air compressor

1. Specification: 2.7m3/1.0MPa; Power: 18.5kw.

2. Micro-oil lubrication, air cooling.

1

11

Cold dryer

1. Specification: 3m3/1.0MPa; Power: 2kw.

2. Air cooling.

1

12

Gas storage tank

1. Specification: 0.6m3/1.0MPa.

2. Material: carbon steel..

1

13

High-efficiency oil remover

1. Specification: 3m3/1.0MPa.

2. Material: carbon steel.

1

14

Precision filter

1. Specification: 3m3/1.0MPa/3μm.

2. Material: Aluminum..

1

15

Precision filter

1. Specification: 3m3/1.0MPa/1μm.

2. Material: Aluminum.

1
