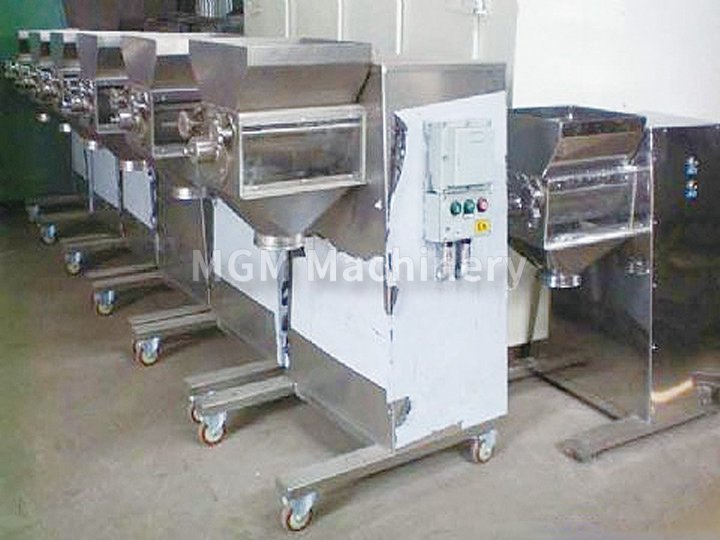

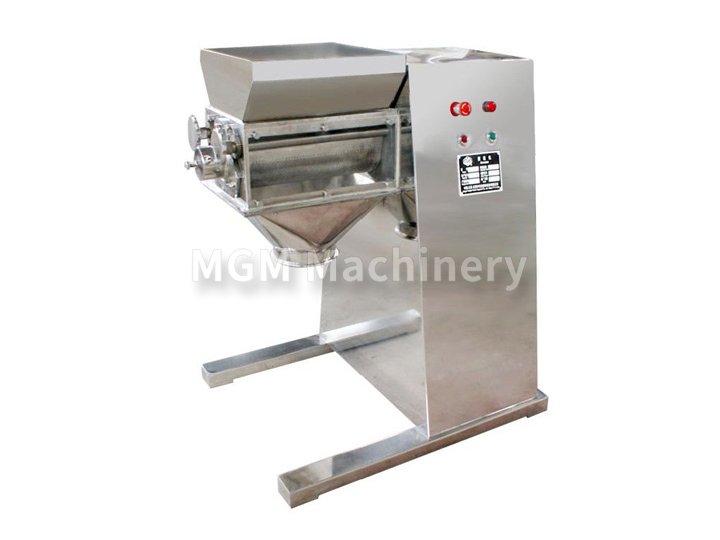

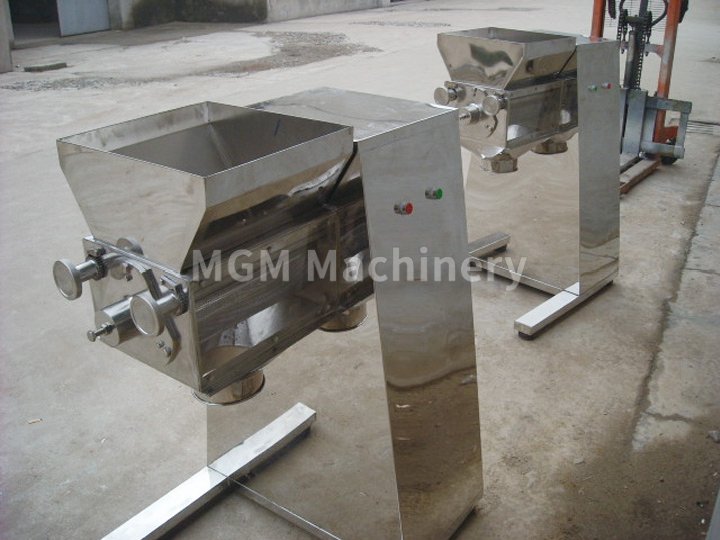

YK series swinging granulator

Product Introduction: Working principleMake the stirred material into particles of the required size, or break the agglomerated material into small particles.Adapt to materialsThis machine is suitable for granulation in industries such as pharmaceuticals, chemicals, food, …

86-139-1681-7899

Online Consultation

Product Details

Working principle

Make the stirred material into particles of the required size, or break the agglomerated material into small particles.

Adapt to materials

This machine is suitable for granulation in industries such as pharmaceuticals, chemicals, food, and solid drinks.

Technical specifications

model	YK160	YK320
production capacity	50-200 kg/h	50-400 kg/h
power	2.2kw	7.5kw
Drum speed	65rpm	65rpm
Swing angle	360^o	360^o
drum diameter	Φ160mm	Φ320mm
weight	450kg	750kg
External dimensions	1000×800×1300m	1500×1200×1500m
